Setting Up Channel 3 - Channel to LLP Client |
The final step is to create the output channel. This channel will accept messages from both of the channels that you have just created.
To create this channel:
- In Iguana, click the Dashboard tab.
-
In the Dashboard Control Panel, click Add Channel. The Add Channel screen appears. - From the Source list box, select From Channel.
- From the Destination list box, select LLP Client. The Add Channel screen now looks like this:
- Click Configure Channel. The Configure New Channel screen appears:
- In the Channel name field, type tutorial3.
- Click the Source tab. The From Channel panel appears:
- From the Add a Source Channel list box, select tutorial.

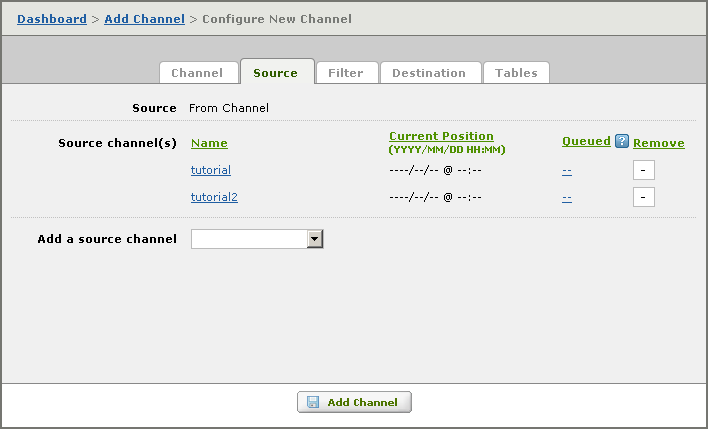

- From this list box, also select tutorial2. The From Channel panel should now look like this:
- Click the Destination tab. The LLP Client panel appears:
- In the Host address field, type localhost.
- In the Port field, type 8889. (If this port is already in use, specify any unused port.)
- Leave the other fields unchanged.
- Click Add Channel to create the channel.
